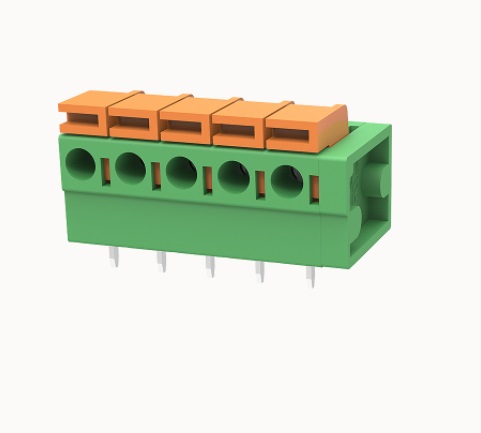

PCB 단자대_DG142R-5.08
■ PCB spring terminal blocks
■ Rated current : 15A
■ Rated voltage(III/2): 250V
■ Cross section : 0.5-2.5mm²
■ pitch : 5.08mm
■ Connector method : Screw connector with tension sleeve
■ Color : Green
■ Contact surface : Tin
■ Certification : CUL EAC

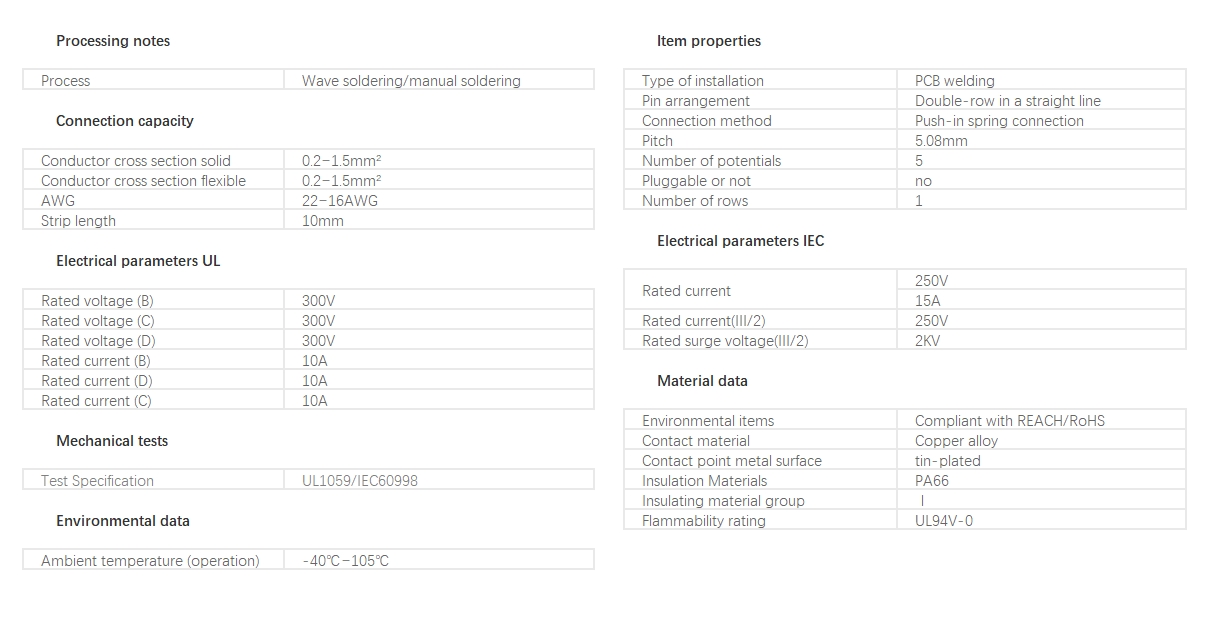

product detail
